Black Durable Off Grid 12v to 220v inverter 1000 Watt Modified Sine
Wave Inverter
How about the modified sine wave inverter ?
Modified sine wave switching inverter power supply uses PWM pulse
width modulation to generate modified wave output. During the
inverter process, due to the use of special intelligent circuits
and high-power FETs, the power loss of the system is greatly
reduced. And the soft start function is added to effectively ensure
the reliability of the inverter. If the power quality requirements
are not very high, and it can meet the needs of most electrical
equipment, it still has 20% harmonic distortion, which will cause
problems when running precision equipment, and will also cause high
frequency to communication equipment. interference.
Features:
- I/P protection: Bat.low alarm, Bat.low shutdown, over voltage,
polarity re-verse
- O/P protection: overload, short circuit, earth fault, over
temperature, soft-start
- Output wave form: Modified Sine Wave
- Design: High frequency design
- Topology: Microprocessor
- No load current draw: low power consumption (standby)
- Cooling fan: load control or temperature controlled cooling fan
(optional)

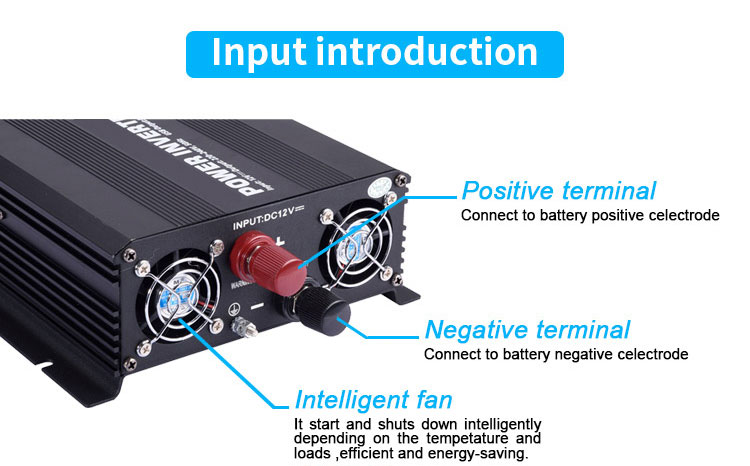

- DC input socket availability is suitable for different user
scenarios.
- 100% real power, high surge power
- Germany technology, made in china, 1.5 years’ warranty
LED Indicator light
CE RoHS ISO E8 approved
About Company :
Jiaxing Solarway New Energy Company is a Sino-Germany Joint venture which is a professional off-grid
power inverter manufacturer in Jiaxing city ,near to Shanghai,China
. We are mainly engaged in high-tech DC TO AC inverter, DC TO DC
converter, MPPT/PWM
sollar controller, solar panel and other solar system accessories,
OEM and ODM service are available.All our products we have
CE,RoHs,E-mark certification .We have R & D Center and After-sales
Service Center in Beijing, China and Leipzig, Germany to make sure
we have new design with patent every year.
Parameter :
MODEL | NM1K-112 | NM1K-124 | NM1K-148 | NM1K-212 | NM1K-224 | NM1K-248 |
Output | AC Voltage | 100/110/120VAC | 220/230/240VAC |
Rated Power | 1000W |
Surge Power | Load 120~150%(3min.);2000W(3sec;resistive) |
Frequency | 50/60Hz ±3Hz |
AC Regulation | ±5% | ±10% |
Waveform | Modified Sine Wave |
Standard Receptacles | USA/British/Franch/Schuko /UK/Australia/Universal etc. optional |
LED Indicator | Green for power on, red for faulty status |
USB port | 5V 2.1A | 5V 2.1A | ------ | 5V 2.1A | 5V 2.1A | ------ |
Input | No Load Current Draw | ≤0.80A | ≤0.60A | ≤0.50A | ≤0.80A | ≤0.60A | ≤0.50A |
DC Voltage | 12VDC | 24VDC | 48VDC | 12VDC | 24VDC | 48VDC |
Voltage Range | 10.5~15VDC | 21~30VDC | 42~60VDC | 10.5~15VDC | 21~30VDC | 42~60VDC |
Efficiency(Typ.) | 89%~94% |
Fuse | 40A×3 | 20A×3 | 10A×3 | 40A×3 | 20A×3 | 10A×3 |
Remote Control | Function (optional) |
Protection | BAT. Low Alarm | 10.5±0.5VDC | 21±1.0VDC | 42±2.0VDC | 10.5±0.5VDC | 21±1.0VDC | 42±2.0VDC |
BAT. Low Shutdown | 10±0.5VDC | 20±1.0VDC | 40±2.0VDC | 10±0.5VDC | 20±1.0VDC | 40±2.0VDC |
Over Load | Shut down output voltage , restart to recover |
Over Voltage | 15.5±0.5VDC | 31±1.0VDC | 62±2.0VDC | 15.5±0.5VDC | 31±1.0VDC | 62±2.0VDC |
Over Temperature | Shut down output voltage , recover automatically after temperature
goes down |
Output Short | Shut down output voltage , restart to recover |
DC Input Reverse Polarity | By fuse |
Earth Fault | Shut off o/p when the load has electrical leakage |
Soft Start | Yes, 3-5 Seconds |
Environment | Working Temp. | 0~+50℃ |
Working Humidity | 20~90%RH non-condensing |
Storage Temp.& Humidity | -30~+70℃,10~95%RH |
Safety & EMC | Safety Standards | Certified UL 458(only for "GFCI" receptacles) | Certified EN 60950-1; 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013. |
Isolation Resistance | I/P-O/P:100M Ohms/500VDC |
EMI Conduction &
Radiation | Certified FCC class A | Certified EN 62040-2:2006,EN61000-3-2; EN61000-3-3; |
EMS Immunity | ------ | Certified IEC61000-4-3, IEC61000-4-6 |
E-MARK | ------ | Certified ECE RIO.05:2014 |
Others | Dimension(L×W×H) | 265×200×96.5mm |
Packing | 2.7kg;6pcs/17kg/0.072m³ |
Cooling | Load control fan or by thermal control fan |
Application | Home and Office appliances, Portable Power Equipment, Vehicle,Yacht
and Off-Gid Solar
power systems…etc. |
FAQ
Q1. what's your types of power inverter?
A:Car Inverter, modified sine wave power inverter, pure sine wave
power inverter, inverter with charger, DC to DC converter, etc.
Q2. what's your power inverter's power range ?
A:150W,200W,300W,400W,500W,600W,1KW,1.2KW,1.5KW,1.6KW,2KW,2.5KW,3KW,3.5KW,4KW,5KW
.
Q3. what kind of service can you provide ?
A;OEM/ODM Service, etc.
Q4. what about the transportation ?
DHL, TNT, FEDEX, UPS, EMS, Shipping etc.
Q5:What is the warranty of car power inverter ?
A:We provide a guarantee for manufacturing faults/defects of 1.5
years for the goods from the date of delivery.
