50/60HZ Pure Sine Wave Inverter , Yacht 48V Inverter Pure Sine Wave

    Buy cheap 50/60HZ Pure Sine Wave Inverter , Yacht 48V Inverter Pure Sine Wave from wholesalers

    Buy cheap 50/60HZ Pure Sine Wave Inverter , Yacht 48V Inverter Pure Sine Wave from wholesalers
    • Buy cheap 50/60HZ Pure Sine Wave Inverter , Yacht 48V Inverter Pure Sine Wave from wholesalers
    • Buy cheap 50/60HZ Pure Sine Wave Inverter , Yacht 48V Inverter Pure Sine Wave from wholesalers
    • Buy cheap 50/60HZ Pure Sine Wave Inverter , Yacht 48V Inverter Pure Sine Wave from wholesalers
    • Buy cheap 50/60HZ Pure Sine Wave Inverter , Yacht 48V Inverter Pure Sine Wave from wholesalers

    50/60HZ Pure Sine Wave Inverter , Yacht 48V Inverter Pure Sine Wave

    Ask Lasest Price
    Brand Name : SolarverTech
    Model Number : NP4000
    Certification : CE ROHS E8
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20000pcs / month
    Delivery Time : 1-10 pcs 7 days , 11- 100 pcs 15days ; 101-300 pcs 25 days
    • Product Details
    • Company Profile

    50/60HZ Pure Sine Wave Inverter , Yacht 48V Inverter Pure Sine Wave

    50/60HZ Pure Sine Wave Inverter , Yacht 48V Inverter Pure Sine Wave

    How about the conversion efficiency of inverter we need to consider ?

    Since the inverter itself also consumes electric power, The inverter has the natural property that it cann’t completely convert 100% of DC power into AC.However, the conversion efficiency is a criterion for us to judge the quality of an inverter. In the rated output state, the general inverter conversion efficiency should be higher than 80% or equal to 80%.


    Parameter :

    MODEL

    一一

    一一

    NP4000-212|NP4000-224| ——

    Output

    AC Voltage


    220/230/240VAC

    Rated Power

    4000W

    Surge Power

    Load 120~150%(3min.);8000W 3sec;resistive)

    Waveform

    Pure Sine Wave(THD<3%)

    Freque ncy

    50/60HZ" 0.05%

    AC Regulation

    ------

    10%

    Power FactorAllowed

    COS#-9OBCOS#+9O$

    Standard Receptacles

    USA/British/Franch/Schuko/UK/Australia/Universal etc. optional

    LED In dicator

    Green for power on, red for faulty status

    USB port




    5V 500mA

    5V 500mA


    Input

    No Load Current Draw




    <1.4A

    <1.0A


    DCVoltage




    12VDC

    24VDC


    Voltage Range




    10.5~15VDC

    21~30VDC


    Efficiency(Typ.)

    89%~93%

    Fuse

    一一

    一一

    ------

    40A&14

    20A&14

    ------

    Remote Control

    Function (optional'

    Protection

    BAT. Low Alarm




    10.5 0.5VDC

    21 1.0VDC


    BAT. Low Shutdown




    10 0.5VDC

    20 1.0VDC


    Over Load

    Shut down output voltage , restart to recover

    Over Voltage


    一一

    ------

    15.5 0.5VDC| 31 1.0VDC

    ------

    Over Temperature

    Shut down output voltage , recover automaticallyafter temperature goes down

    Output Short

    Shut down output voltage , restart to recover

    DC In put Reverse Polarity

    By fuse

    Earth Fault

    Shut off o/p when the load has electrical leakage

    Soft Start

    Yes, 3-5 Seconds

    Environment

    Working Temp.

    0~+50)

    Working Humidity

    20~90%RH non-condensing

    Storage Temp.&Humidity

    -30~+70) ,10~95%RH

    Safety &
    EMC

    Safety Sta ndards


    Certified EN 60950-1; 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013.

    Isolation Resistance

    I/P-O/P:100M Ohms/500VDC

    EMI Conduction &Radiati on


    Certified EN 62040-2:2006,EN61000-3-2; EN61000-3-3;

    EMS Immunity


    Certified IEC61000-4-3, IEC61000-4-6

    E-MARK


    Certified ECE RIO.05:2014

    Others

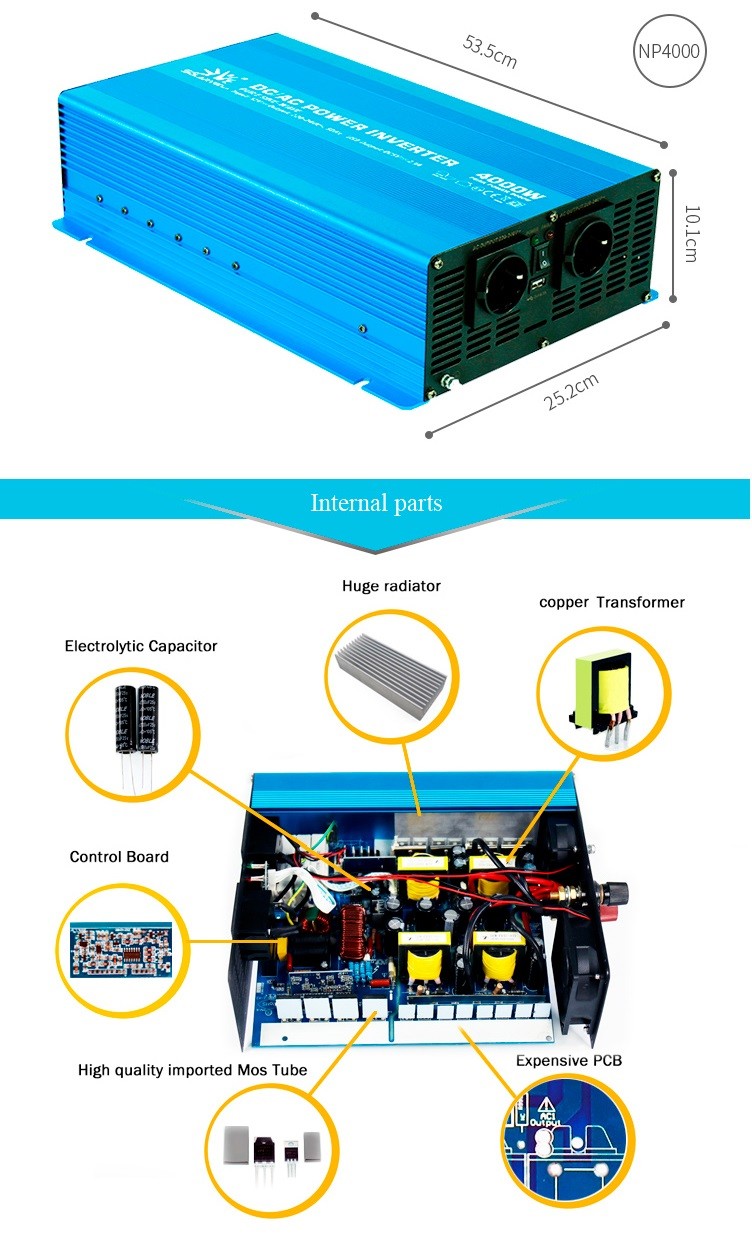

    Dimension(L! W! H)

    535*252* 101mm

    Pack ing

    8.5kg;2pcs/18kg/0.08m*

    Cooling

    Load control fan or by thermal control fan

    Applicati on

    Home and Office appliances, Portable Power Equipment, Vehicle, Yacht and Off-Gid Solar power systems, etc.


    Feature:

    • High frequency transformer design is capable of driving high reactive
    • Pure Sine Wave output(THD<3%)
    • Power ON/OFF remote control(optional)
    • Input & output fully isolation
    • Input Protection: Reverse Polarity(Fuse)/Under Voltage/Over Voltage
    • Output Protection: Short Circuit / Overload /Over Temperature/ Earth Fault / Soft Start
    • Germany technology , Made in china
    • 100% real power, High surge power
    • 2 year warranty
    • E8/CE/Rohs Approved

    50/60HZ Pure Sine Wave Inverter , Yacht 48V Inverter Pure Sine Wave

    50/60HZ Pure Sine Wave Inverter , Yacht 48V Inverter Pure Sine Wave50/60HZ Pure Sine Wave Inverter , Yacht 48V Inverter Pure Sine Wave

    FAQ:


    Q1. Can I have a sample order for inverter?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


    Q2. What about the lead time?
    A:Sample needs 5 working days, mass production time needs 1-2 weeks for order quantity more than.


    Q3. Do you have any MOQ limit for solar inverter order?
    A: Low MOQ, 1pc for sample checking is available


    Q4. How do you ship the goods and how long does it take to arrive?
    A: Airline and sea shipping also optional.ship by sea usually takes 25-35 days to arrive.


    Q5. How to proceed an order for inverter?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.


    Q6. Is it OK to print my logo on inverter product?with logo printing,what's the MOQ for mass?
    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.the MOQ for logo OEM is 50pcs.


    About solarway:
    Jiaxing Solarway New Energy Company is a Sino-Germany Joint venture which is a professional off-grid power inverter manufacturer in Jiaxing city ,near to Shanghai,China . We are mainly engaged in high-tech DC TO AC inverter, DC TO DC converter, MPPT/PWM
    sollar controller, solar panel and other solar system accessories, OEM and ODM service are available.All our products we have CE,RoHs,E-mark,ETL certification .We have R & D Center and After-sales Service Center in Beijing, China and Leipzig, Germany to make sure we have new design with patent every year.
