4000 Watt Pure Sine Wave Power Inverter 24V 110V 220V 4000W For Truck

    Buy cheap 4000 Watt Pure Sine Wave Power Inverter 24V 110V 220V 4000W For Truck from wholesalers

    Buy cheap 4000 Watt Pure Sine Wave Power Inverter 24V 110V 220V 4000W For Truck from wholesalers
    • Buy cheap 4000 Watt Pure Sine Wave Power Inverter 24V 110V 220V 4000W For Truck from wholesalers
    • Buy cheap 4000 Watt Pure Sine Wave Power Inverter 24V 110V 220V 4000W For Truck from wholesalers
    • Buy cheap 4000 Watt Pure Sine Wave Power Inverter 24V 110V 220V 4000W For Truck from wholesalers

    4000 Watt Pure Sine Wave Power Inverter 24V 110V 220V 4000W For Truck

    Ask Lasest Price
    Brand Name : Solarvertech
    Model Number : FS Series
    Certification : CE,Rohs,E mark.ISO9001
    Price : Negotiation
    Supply Ability : 10000
    Delivery Time : samples in 5 working day
    • Product Details
    • Company Profile

    4000 Watt Pure Sine Wave Power Inverter 24V 110V 220V 4000W For Truck

    Product Description

    4000 Watt Inverter 24V 110V 220V 4000W Pure Sine Wave Power Inverter For Truck


    Power inverter is a kind of products which change the DC electricity to AC electricity. It has been widely used in cars, steamboats, mobile offering post and telecommunications, public security, emergency and other field.

    This power inverter has adopted the international lead circuit design, with the advantage of small size, light, stable, and high conversion efficiency. It has five kind of protect function such as: input under voltage protection, input over voltage protection, overload protection, over temperature protection, output short circuit protection.


    Features:
    Pure sine wave output ( THD < 3% )
    Input & output completely isolated design
    High efficiency93%
    Loading and temperature controlled the cooling fan.
    Protection: input low voltage alarm & shutdown, overload,short circuit, input over voltage, over temperature, reverse polarity
    USB output port 5V2.1A
    With Remote controller function /CR80 /CRD80 /CRD99 Remote controller with 5m cable optional,wireless remote controller optional.
    LCD display function optional
    2 years quality warranty, technical supporting whole life.
    pure sine wave inverter specifications:
    MODEL
    ------
    ------
    ------
    FS4000-212
    FS4000-224
    ------
    Output
    AC Voltage
    ------
    220/230/240VAC
    Rated Power
    4000W
    Surge Power
    Load 120~150%(3min.);8000W(3sec;resistive)
    Waveform
    Pure Sine Wave(THD<3%)
    Frequency
    50/60Hz ±0.05%
    AC Regulation
    ------
    ±10%
    Power Factor Allowed
    COSθ-90°~COSθ+90°
    Standard Receptacles
    USA/British/Franch/Schuko /UK/Australia/Universal etc. optional
    LED Indicator
    Green for power on, red for faulty status
    USB port
    ------
    ------
    ------
    5V 500mA
    5V 500mA
    ------
    LCD display
    voltage, power, protection status ( optional)
    Remote control function
    default
    Remote controller
    CR80/CRD80 optional
    Input
    No Load Current Draw
    ------
    ------
    ------
    ≤1.4A
    ≤1.0A
    ------
    DC Voltage
    ------
    ------
    ------
    12VDC
    24VDC
    ------
    Voltage Range
    ------
    ------
    ------
    10.5~15VDC
    21~30VDC
    ------
    Efficiency(Typ.)
    89%~93%
    Fuse
    ------
    ------
    ------
    40A×14
    20A×14
    ------
    Remote Control
    Function (optional)
    Protection
    BAT. Low Alarm
    ------
    ------
    ------
    10.5±0.5VDC
    21±1.0VDC
    ------
    BAT. Low Shutdown
    ------
    ------
    ------
    10±0.5VDC
    20±1.0VDC
    ------
    Over Load
    Shut down output voltage , restart to recover
    Over Voltage
    ------
    ------
    ------
    15.5±0.5VDC
    31±1.0VDC
    ------
    Over Temperature
    Shut down output voltage , recover automatically after temperature goes down
    Output Short
    Shut down output voltage , restart to recover
    DC Input Reverse Polarity
    By fuse
    Earth Fault
    Shut off o/p when the load has electrical leakage
    Soft Start
    Yes, 3-5 Seconds
    Environment
    Working Temp.
    0~+50℃
    Working Humidity
    20~90%RH non-condensing
    Storage Temp.&Humidity
    -30~+70℃,10~95%RH
    Safety & EMC
    Safety Standards
    ------
    Certified EN 60950-1; 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013.
    Isolation Resistance
    I/P-O/P:100M Ohms/500VDC
    EMI Conduction &
    Radiation
    ------
    Certified EN 62040-2:2006,EN61000-3-2; EN61000-3-3;
    EMS Immunity
    ------
    Certified IEC61000-4-3, IEC61000-4-6
    E-MARK
    ------
    Certified ECE RIO.05:2014
    Others
    Dimension(L×W×H)
    533.2×261.3×112.7mm
    Packing
    8.5kg;2pcs/18kg/0.08m³
    Cooling
    Load control fan or by thermal control fan
    Application
    Home and Office appliances,Portable Power Equipment,Vehicle,Yacht and Off-Gid Solar
    power systems…etc.

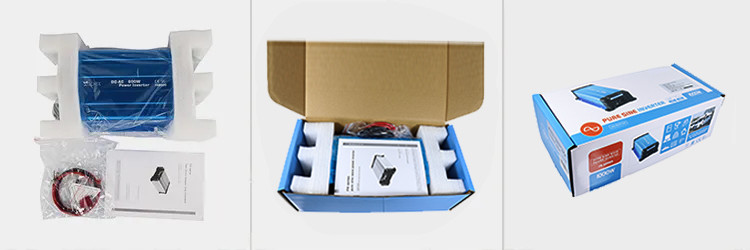

    Product picures:

    4000 Watt Pure Sine Wave Power Inverter 24V 110V 220V 4000W For Truck

    4000 Watt Pure Sine Wave Power Inverter 24V 110V 220V 4000W For Truck4000 Watt Pure Sine Wave Power Inverter 24V 110V 220V 4000W For Truck4000 Watt Pure Sine Wave Power Inverter 24V 110V 220V 4000W For Truck4000 Watt Pure Sine Wave Power Inverter 24V 110V 220V 4000W For Truck4000 Watt Pure Sine Wave Power Inverter 24V 110V 220V 4000W For Truck

    4000 Watt Pure Sine Wave Power Inverter 24V 110V 220V 4000W For Truck

    FAQ:

    How to choose suitable inverter ?
    If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave inverter. For example: fans, precision instruments, air conditioner, fridge,coffee machine, computer, and so on. Modified wave can be started with some inductive loads, but effect for load using life, because capacitive loads and inductive loads need highquality power.
    ............................................................................................................................................................

    How do I choose the size of the inverter ?
    Different types of load demand for power are different. You can view the load power values to determine the size of the inverter.
    Notice: resistive load: you can choose the same power as the load. Capacitive loads: according to the load, you can choose 2-5 times power. Inductive loads: according to the load, you can choose 4-7 times power.


    About solarway:
    Jiaxing Solarway New Energy Company is a Sino-Germany Joint venture which is a professional off-grid power inverter manufacturer in Jiaxing city ,near to Shanghai,China . We are mainly engaged in high-tech DC TO AC inverter, DC TO DC converter, MPPT/PWM
    sollar controller, solar panel and other solar system accessories, OEM and ODM service are available.All our products we have CE,RoHs,E-mark certification .We have R & D Center and After-sales Service Center in Beijing, China and Leipzig, Germany to make sure we have new design with patent every year.
