Portable 1500W Pure Sine Wave Power Inverter 12V 24V 48V Dc To Ac 110v 220v

    Buy cheap Portable 1500W Pure Sine Wave Power Inverter 12V 24V 48V Dc To Ac 110v 220v from wholesalers

    Buy cheap Portable 1500W Pure Sine Wave Power Inverter 12V 24V 48V Dc To Ac 110v 220v from wholesalers
    • Buy cheap Portable 1500W Pure Sine Wave Power Inverter 12V 24V 48V Dc To Ac 110v 220v from wholesalers
    • Buy cheap Portable 1500W Pure Sine Wave Power Inverter 12V 24V 48V Dc To Ac 110v 220v from wholesalers
    • Buy cheap Portable 1500W Pure Sine Wave Power Inverter 12V 24V 48V Dc To Ac 110v 220v from wholesalers
    • Buy cheap Portable 1500W Pure Sine Wave Power Inverter 12V 24V 48V Dc To Ac 110v 220v from wholesalers

    Portable 1500W Pure Sine Wave Power Inverter 12V 24V 48V Dc To Ac 110v 220v

    Ask Lasest Price
    Brand Name : SolarverTech
    Model Number : TFS1500D
    Certification : CE ROHS E8
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000 pieces per month
    Delivery Time : 1-7 10 days, 11-100 300 days, more than 100 negotiations
    • Product Details
    • Company Profile

    Portable 1500W Pure Sine Wave Power Inverter 12V 24V 48V Dc To Ac 110v 220v

    12V 24V 48V Dc to Ac 110v 220v 1500W Pure Sine Wave Power Inverter bypass function


    PURE with IVT function is a range of inverters with an integrated priority system (Priority Switch type). This special IVT function, using the two 230V input and output sockets, allows management of the voltage coming from the inverter connected to the battery and from the external grid. This special IVT function, using the two 230V input and output sockets, allows management of the voltage coming from the inverter connected to the battery and from the external main power supply.

    Features:
    Pure sine wave output ( THD < 3% )
    Input & output completely isolated design
    High efficiency93%
    Loading and temperature controlled the cooling fan.
    Protection: input low voltage alarm & shutdown, overload,short circuit, input over voltage, over temperature, reverse polarity
    USB output port 5V2.1A
    With Remote controller function /CR80 /CRD80 /CRD99 Remote controller with 5m cable optional,wireless remote controller optional.
    LCD display function optional
    2 years quality warranty, technical supporting whole life.

      pure sine wave inverter specifications:

      MODEL
      TFS1500-112
      TFS1500-124
      TFS1500-148
      TFS1500-212
      TFS1500-224
      TFS1500-248
      Output
      AC Voltage
      100/110/120VAC
      220/230/240VAC
      Rated Power
      1500W
      Surge Power
      Load 120~150%(3min.);3000W(3sec; resistive)
      Waveform
      Pure Sine Wave(THD<3%)
      Frequency
      50/60Hz ±0.05%
      AC Regulation
      ±5%
      ±10%
      Power Factor Allowed
      COSθ-90°~COSθ+90°
      Standard Receptacles
      USA/British/Franch/Schuko /UK/Australia/Universal etc. optional
      LED Indicator
      Green for power on, red for faulty status
      USB port
      5V 2.1A
      5V 2.1A
      ------
      5V 2.1A
      5V 2.1A
      ------
      LCD display
      voltage, power, protection status ( optional)
      Remote control function
      default
      Remote controller
      CR80/CRD80 optional
      Input
      No Load Current Draw
      ≤1.1A
      ≤0.80A
      ≤0.70A
      ≤1.1A
      ≤0.80A
      ≤0.70A
      DC Voltage
      12VDC
      24VDC
      48VDC
      12VDC
      24VDC
      48VDC
      Voltage Range
      10.5~15VDC
      21~30VDC
      42~60VDC
      10.5~15VDC
      21~30VDC
      42~60VDC
      Efficiency(Typ.)
      89%~93%
      Fuse
      40A×6
      20A×6
      10A×6
      40A×6
      20A×6
      10A×6
      Remote Control
      Function (optional)
      Protection
      BAT. Low Alarm
      10.5±0.5VDC
      21±1.0VDC
      42±2.0VDC
      10.5±0.5VDC
      21±1.0VDC
      42±2.0VDC
      BAT. Low Shutdown
      10±0.5VDC
      20±1.0VDC
      40±2.0VDC
      10±0.5VDC
      20±1.0VDC
      40±2.0VDC
      Over Load
      Shut down output voltage , restart to recover
      Over Voltage
      15.5±0.5VDC
      31±1.0VDC
      62±2.0VDC
      15.5±0.5VDC
      31±1.0VDC
      62±2.0VDC
      Over Temperature
      Shut down output voltage , recover automatically after temperature goes down
      Output Short
      Shut down output voltage , restart to recover
      DC Input Reverse Polarity
      By fuse
      Earth Fault
      Shut off o/p when the load has electrical leakage
      Soft Start
      Yes, 3-5 Seconds
      Environment
      Working Temp.
      0~+50℃
      Working Humidity
      20~90%RH non-condensing
      Storage Temp.&Humidity
      -30~+70℃,10~95%RH
      Safety & EMC
      Safety Standards
      Certified UL 458(only for "GFCI" receptacles)
      Certified EN 60950-1; 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013.
      Isolation Resistance
      I/P-O/P:100M Ohms/500VDC
      EMI Conduction &
      Radiation
      Certified FCC class A
      Certified EN 62040-2:2006,EN61000-3-2; EN61000-3-3;
      EMS Immunity
      ------
      Certified IEC61000-4-3, IEC61000-4-6
      E-MARK
      ------
      Certified ECE RIO.05:2014
      Others
      Dimension(L×W×H)
      325.2×281.3×112.7mm
      Packing
      5.2kg;2pcs/11.1kg/0.053m³
      Cooling
      Load control fan or by thermal control fan
      Application
      Home and Office appliances,Portable Power Equipment,Vehicle,Yacht and Off-Gid Solar
      power systems…etc.

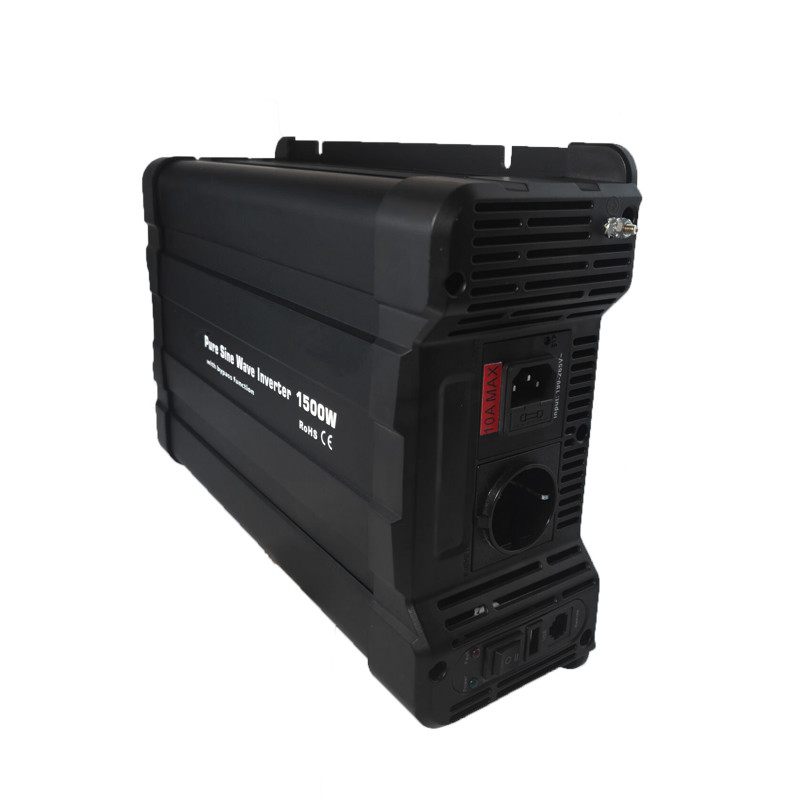

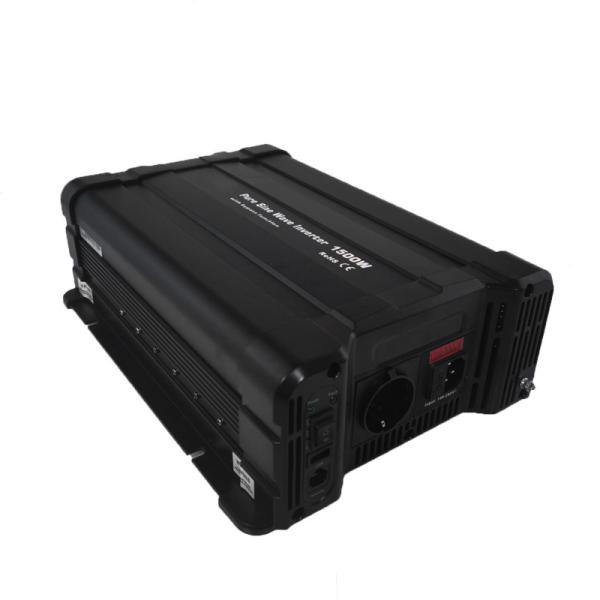

      Product picures:

      Portable 1500W Pure Sine Wave Power Inverter 12V 24V 48V Dc To Ac 110v 220v


      About solarway:
      Jiaxing Solarway New Energy Company is a Sino-Germany Joint venture which is a professional off-grid power inverter manufacturer in Jiaxing city ,near to Shanghai,China . We are mainly engaged in high-tech DC TO AC inverter, DC TO DC converter, MPPT/PWM
      sollar controller, solar panel and other solar system accessories, OEM and ODM service are available.All our products we have CE,RoHs,E-mark,ETL certification .We have R & D Center and After-sales Service Center in Beijing, China and Leipzig, Germany to make sure we have new design with patent every year.
