    4 Buttons PWM Battery Charge Controller , Ultralight Automatic Solar Controller

    Ask Lasest Price
    Brand Name : SolarverTech
    Model Number : NC12/24-60DU
    Certification : CE ROHS E8
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20000 pieces per month
    Delivery Time : <=10pieces,7days <=200pieces,20days
    • Product Details
    • Company Profile

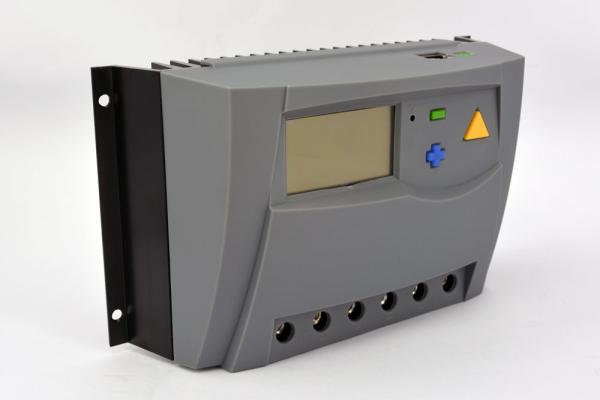

    4 Buttons PWM Battery Charge Controller , Ultralight Automatic Solar Controller

    12V 24V USB LCD Intelligent 60A Battery Power PWM Solar Charge Controller
    Overview
    PWM is pulse modulation, control mode is to control the inverter circuit switch device on and off, so that the output end to get a series of equal amplitude pulse, with these pulses to replace the sine wave or the required waveform. In other words, multiple pulses are generated in the half cycle of the output waveform, so that the equivalent voltage of each pulse is sinusoidal waveform, and the output obtained is smooth and the low harmonic is less. By modulating the width of each pulse according to certain rules, the output voltage and output frequency of the inverter circuit can be changed.
    Quick Details
    Place of Origin:
    Zhejiang, China
    Brand Name:
    Solarvertech/OEM
    Model Number:
    NC12/24-60A
    Type:
    PWM
    Application:
    Charger Controller
    battery type:
    GEL, SLD, FLD and USr(default)
    Storage temperature:
    -30 ~ +80 °C
    Certification:
    CE RoHS ISO9001
    Warranty:
    2 Year
    Supply Ability
    Supply Ability
    20000 Piece/Pieces per Month
    Packaging & Delivery
    Packaging Details
    paper carton/ plastic pallet, as your request
    Port
    shanghai or ningbo
    Technical data
    ModelNC12/24-60Du
    PV input voltagc≤50V
    Rated charge current60A
    System voltage12V24VAuto
    Battery over-voltage protection voltage16.00V*1/*2/*3/*4
    Rated discharge current60A
    No-load loss<14 mA
    Charge loop voltage drop≤0.22V
    discharge loop voltage drop≤0.12V
    Charging modePWM 4 stages (bulk,absorption,float,equalized)
    Float Charge Voltage13.8(13V~15V)*1/*2/*3/*4
    Absorption charge voltage14.4V(13V~15V)*1/*2/*3/*4
    Duration of Absorption Charge2hs
    Voltage of equalized charging*14.6V(13V~15.5V)*1/*2/*3/*4
    Duration of equalized charging2hs
    Low voltage disconnection10.8V(10V~14V)*1/*2/*3/*4
    Low voltage reconnection12.6V(1oV~14V)*1/*2/*3/*4
    USB port5V1A

    We Solarway New Energy company will launch 4-5 new products every year and leading the market .


    FAQ

    1.Q:Do you have your own factory?

    A:Yes, we are professional manufacturer mainly in power inverter for many years. Our facory is located in Jiaxing, Zhejiang, China.

    2.Q:What kind of certification you have?
    A:ISO9001,CE,ROHS and so on.

    Our products could pass different labor testing according to different countries' requirements.

    3.Q:Where we can use the system?

    A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.


    4.Q:How about your warranty?

    A: We provide 1.5 and 3 years warranty for different products and whole life technical support.


    5.Q:Competitive Price

    A:All of our products are produced by our own factory. So the price is very copetitive.


    6.Q:How to do the installation?

    A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.


    7.Q:24-hours online service

    A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.
