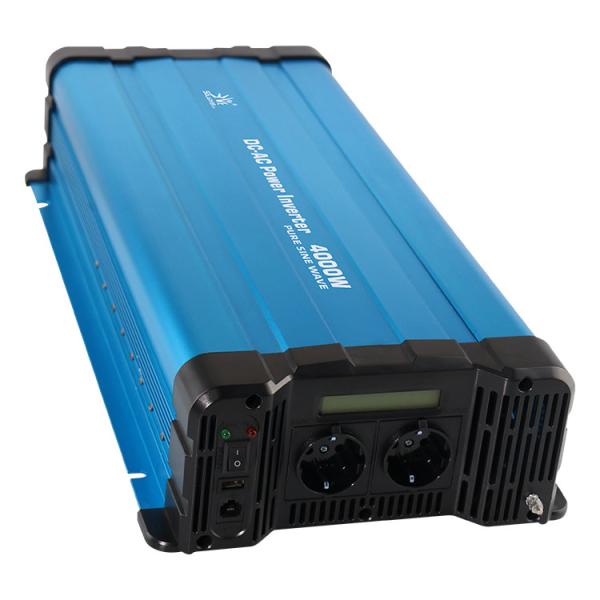

2.1A Portable 12V Pure Sine Wave Inverter 4000 Watt With LCD Display

    Buy cheap 2.1A Portable 12V Pure Sine Wave Inverter 4000 Watt With LCD Display from wholesalers

    Buy cheap 2.1A Portable 12V Pure Sine Wave Inverter 4000 Watt With LCD Display from wholesalers
    • Buy cheap 2.1A Portable 12V Pure Sine Wave Inverter 4000 Watt With LCD Display from wholesalers
    • Buy cheap 2.1A Portable 12V Pure Sine Wave Inverter 4000 Watt With LCD Display from wholesalers
    • Buy cheap 2.1A Portable 12V Pure Sine Wave Inverter 4000 Watt With LCD Display from wholesalers
    • Buy cheap 2.1A Portable 12V Pure Sine Wave Inverter 4000 Watt With LCD Display from wholesalers

    2.1A Portable 12V Pure Sine Wave Inverter 4000 Watt With LCD Display

    Ask Lasest Price
    Brand Name : SolarverTech
    Model Number : FS4000D
    Certification : CE ROHS E8
    Price : Negotiation
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 10000
    Delivery Time : samples in 5 working day
    • Product Details
    • Company Profile

    2.1A Portable 12V Pure Sine Wave Inverter 4000 Watt With LCD Display

    4000 watt DC 12v 24v to AC 110v 220v 230v pure sine wave power inverter
    Product Description
    The FS series high-frequency inverter is based on the digital intelligent design, which converts 12/24/48V DC system power to 220-240V / 100-127V AC power. It is a pure sine wave inverter with CE design specifications. It has the characteristics of high reliability,high efficiency, compact size, complete protection function, easy to install, easy to operate and so on. It is suitable for all kinds of applications that need to convert DC power into AC power, for the use of home and office appliances, power tools and portable equipment,vehicle, yacht, caravan and specially for the off grid solar power systems.
    Features:
    Pure sine wave output ( THD < 3% )
    Input & output completely isolated design
    High efficiency93%
    Loading and temperature controlled the cooling fan.
    Protection: input low voltage alarm & shutdown, overload, short circuit, input over voltage, over temperature, reverse polarity
    USB output port 5V2.1A
    With Remote controller function /CR80 /CRD80 /CRD99 Remote controller with 5m cable optional,wireless remote controller optional.
    LCD display function optional
    2 years quality warranty, technical supporting whole life.
    pure sine wave inverter specifications:
    MODEL
    ------
    ------
    ------
    FS4000-212
    FS4000-224
    ------
    Output
    AC Voltage
    ------
    220/230/240VAC
    Rated Power
    4000W
    Surge Power
    Load 120~150%(3min.);8000W(3sec;resistive)
    Waveform
    Pure Sine Wave(THD<3%)
    Frequency
    50/60Hz ±0.05%
    AC Regulation
    ------
    ±10%
    Power Factor Allowed
    COSθ-90°~COSθ+90°
    Standard Receptacles
    USA/British/Franch/Schuko /UK/Australia/Universal etc. optional
    LED Indicator
    Green for power on, red for faulty status
    USB port
    ------
    ------
    ------
    5V 500mA
    5V 500mA
    ------
    LCD display
    voltage, power, protection status ( optional)
    Remote control function
    default
    Remote controller
    CR80/CRD80 optional
    Input
    No Load Current Draw
    ------
    ------
    ------
    ≤1.4A
    ≤1.0A
    ------
    DC Voltage
    ------
    ------
    ------
    12VDC
    24VDC
    ------
    Voltage Range
    ------
    ------
    ------
    10.5~15VDC
    21~30VDC
    ------
    Efficiency(Typ.)
    89%~93%
    Fuse
    ------
    ------
    ------
    40A×14
    20A×14
    ------
    Remote Control
    Function (optional)
    Protection
    BAT. Low Alarm
    ------
    ------
    ------
    10.5±0.5VDC
    21±1.0VDC
    ------
    BAT. Low Shutdown
    ------
    ------
    ------
    10±0.5VDC
    20±1.0VDC
    ------
    Over Load
    Shut down output voltage , restart to recover
    Over Voltage
    ------
    ------
    ------
    15.5±0.5VDC
    31±1.0VDC
    ------
    Over Temperature
    Shut down output voltage , recover automatically after temperature goes down
    Output Short
    Shut down output voltage , restart to recover
    DC Input Reverse Polarity
    By fuse
    Earth Fault
    Shut off o/p when the load has electrical leakage
    Soft Start
    Yes, 3-5 Seconds
    Environment
    Working Temp.
    0~+50℃
    Working Humidity
    20~90%RH non-condensing
    Storage Temp.&Humidity
    -30~+70℃,10~95%RH
    Safety & EMC
    Safety Standards
    ------
    Certified EN 60950-1; 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013.
    Isolation Resistance
    I/P-O/P:100M Ohms/500VDC
    EMI Conduction &
    Radiation
    ------
    Certified EN 62040-2:2006,EN61000-3-2; EN61000-3-3;
    EMS Immunity
    ------
    Certified IEC61000-4-3, IEC61000-4-6
    E-MARK
    ------
    Certified ECE RIO.05:2014
    Others
    Dimension(L×W×H)
    533.2×261.3×112.7mm
    Packing
    8.5kg;2pcs/18kg/0.08m³
    Cooling
    Load control fan or by thermal control fan
    Application
    Home and Office appliances,Portable Power Equipment,Vehicle,Yacht and Off-Gid Solar
    power systems…etc.

    2.1A Portable 12V Pure Sine Wave Inverter 4000 Watt With LCD Display2.1A Portable 12V Pure Sine Wave Inverter 4000 Watt With LCD Display


    About solarway:

    Solarway is a Sino-Germany Joint venture which is a professional off-grid power inverter manufacturer in Jiaxing city ,near to Shanghai,China . We are mainly engaged in high-tech DC TO AC inverter, DC TO DC converter, MPPT/PWM sollar controller, solar panel and other solar system accessories, OEM and ODM service are available.All our products we have CE,RoHs,E-mark,ETL certification
    We have R & D Center and After-sales Service Center in Beijing, China and Leipzig, Germany to make sure we have new design with patent every year.
