    Pure Sine Wave Inverter With Wireless Controller 12V 110V 230V 3500W

    Ask Lasest Price
    Brand Name : Solarvertech
    Model Number : FS Series
    Certification : CE,Rohs,E mark.ISO9001
    Price : Negotiation
    Supply Ability : 10000
    Delivery Time : samples in 5 working day
    • Product Details
    • Company Profile

    Pure Sine Wave Inverter With Wireless Controller 12V 110V 230V 3500W

    Product Description

    3500 Watt Power Inverter 12V 110V 230V 3500W Pure Sine Wave Inverter With Wireless Controller


    Power inverter is a kind of products which change the DC electricity to AC electricity. It has been widely used in cars, steamboats, mobile offering post and telecommunications, public security, emergency and other field.

    This power inverter has adopted the international lead circuit design, with the advantage of small size, light, stable, and high conversion efficiency. It has five kind of protect function such as: input under voltage protection, input over voltage protection, overload protection, over temperature protection, output short circuit protection.


    Features:
    Pure sine wave output ( THD < 3% )
    Input & output completely isolated design
    High efficiency93%
    Loading and temperature controlled the cooling fan.
    Protection: input low voltage alarm & shutdown, overload,short circuit, input over voltage, over temperature, reverse polarity
    USB output port 5V2.1A
    With Remote controller function /CR80 /CRD80 /CRD99 Remote controller with 5m cable optional,wireless remote controller optional.
    LCD display function optional
    2 years quality warranty, technical supporting whole life.
    pure sine wave inverter specifications:
    MODEL
    FS3500D-112
    FS3500D-124
    FS3500D-148
    FS3500D-212
    FS3500D-224
    FS3500D-248
    Output
    AC Voltage
    100/110/120VAC
    220/230/240VAC
    Rated Power
    3500W
    Surge Power
    Load 120~150%;7000W(20ms;resistive)
    Waveform
    Pure Sine Wave
    USB port
    5V 2.1A
    5V 2.1A
    ------
    5V 2.1A
    5V 2.1A
    ------
    Input
    DC Voltage
    12VDC
    24VDC
    48VDC
    12VDC
    24VDC
    48VDC
    Voltage Range
    10.5~15VDC
    21~30VDC
    42~60VDC
    10.5~15VDC
    21~30VDC
    42~60VDC
    Efficiency(Typ.)
    >90%
    Remote Control
    Function(optional)
    Protection
    BAT.Low Alarm
    10.5±0.5VDC
    21±1.0VDC
    42±2.0VDC
    10.5±0.5VDC
    21±1.0VDC
    42±2.0VDC
    BAT.LOW Shutdown
    10±0.5VDC
    20±1.0VDC
    40±2.0VDC
    10±0.5VDC
    20±1.0VDC
    40±2.0VDC
    Over Load
    Shut down output voltage, restart to recover
    Over Voltage
    15.5±0.5VDC
    31±1.0VDC
    62±2.0VDC
    15.5±0.5VDC
    31±1.0VDC
    62±2.0VDC
    Over Temperature
    Shut down output voltage, recover automatically after temperature goes down
    Output Short
    Shut down output voltage, restart to recover
    DC Input Reverse Polarity
    By fuse
    Earth Fault
    Shut off o/p when the load has electrical leakage
    Soft Start
    Yes,3~5 Seconds

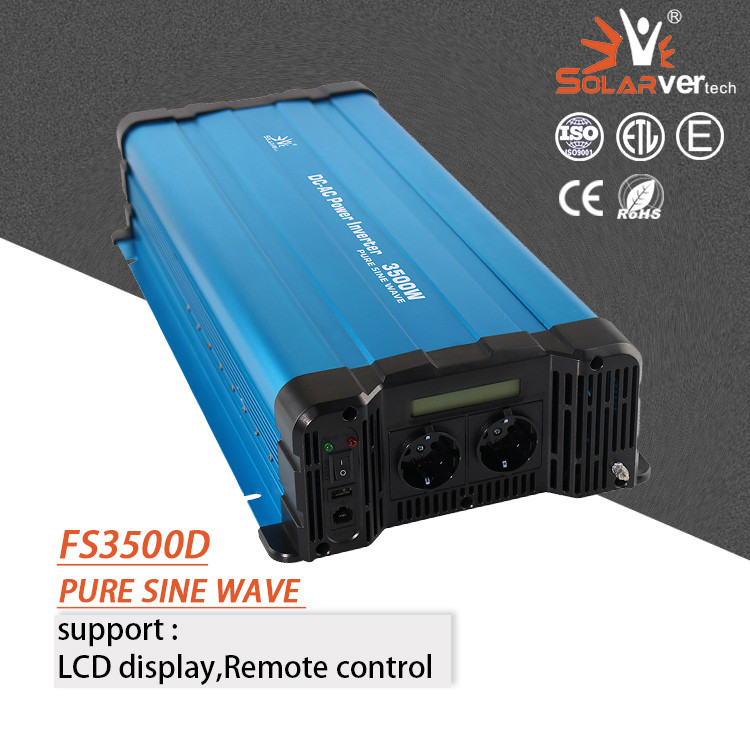

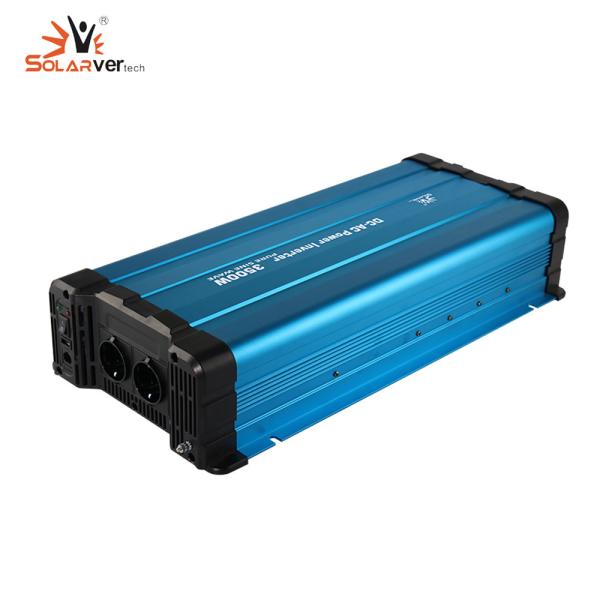

    Product picures:

    Pure Sine Wave Inverter With Wireless Controller 12V 110V 230V 3500W

    Pure Sine Wave Inverter With Wireless Controller 12V 110V 230V 3500WPure Sine Wave Inverter With Wireless Controller 12V 110V 230V 3500WPure Sine Wave Inverter With Wireless Controller 12V 110V 230V 3500WPure Sine Wave Inverter With Wireless Controller 12V 110V 230V 3500WPure Sine Wave Inverter With Wireless Controller 12V 110V 230V 3500W

    Pure Sine Wave Inverter With Wireless Controller 12V 110V 230V 3500W

    FAQ:

    How to choose suitable inverter ?
    If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave inverter. For example: fans, precision instruments, air conditioner, fridge,coffee machine, computer, and so on. Modified wave can be started with some inductive loads, but effect for load using life, because capacitive loads and inductive loads need highquality power.
    ............................................................................................................................................................

    How do I choose the size of the inverter ?
    Different types of load demand for power are different. You can view the load power values to determine the size of the inverter.
    Notice: resistive load: you can choose the same power as the load. Capacitive loads: according to the load, you can choose 2-5 times power. Inductive loads: according to the load, you can choose 4-7 times power.


    About solarway:
    Jiaxing Solarway New Energy Company is a Sino-Germany Joint venture which is a professional off-grid power inverter manufacturer in Jiaxing city ,near to Shanghai,China . We are mainly engaged in high-tech DC TO AC inverter, DC TO DC converter, MPPT/PWM
    sollar controller, solar panel and other solar system accessories, OEM and ODM service are available.All our products we have CE,RoHs,E-mark certification .We have R & D Center and After-sales Service Center in Beijing, China and Leipzig, Germany to make sure we have new design with patent every year.
